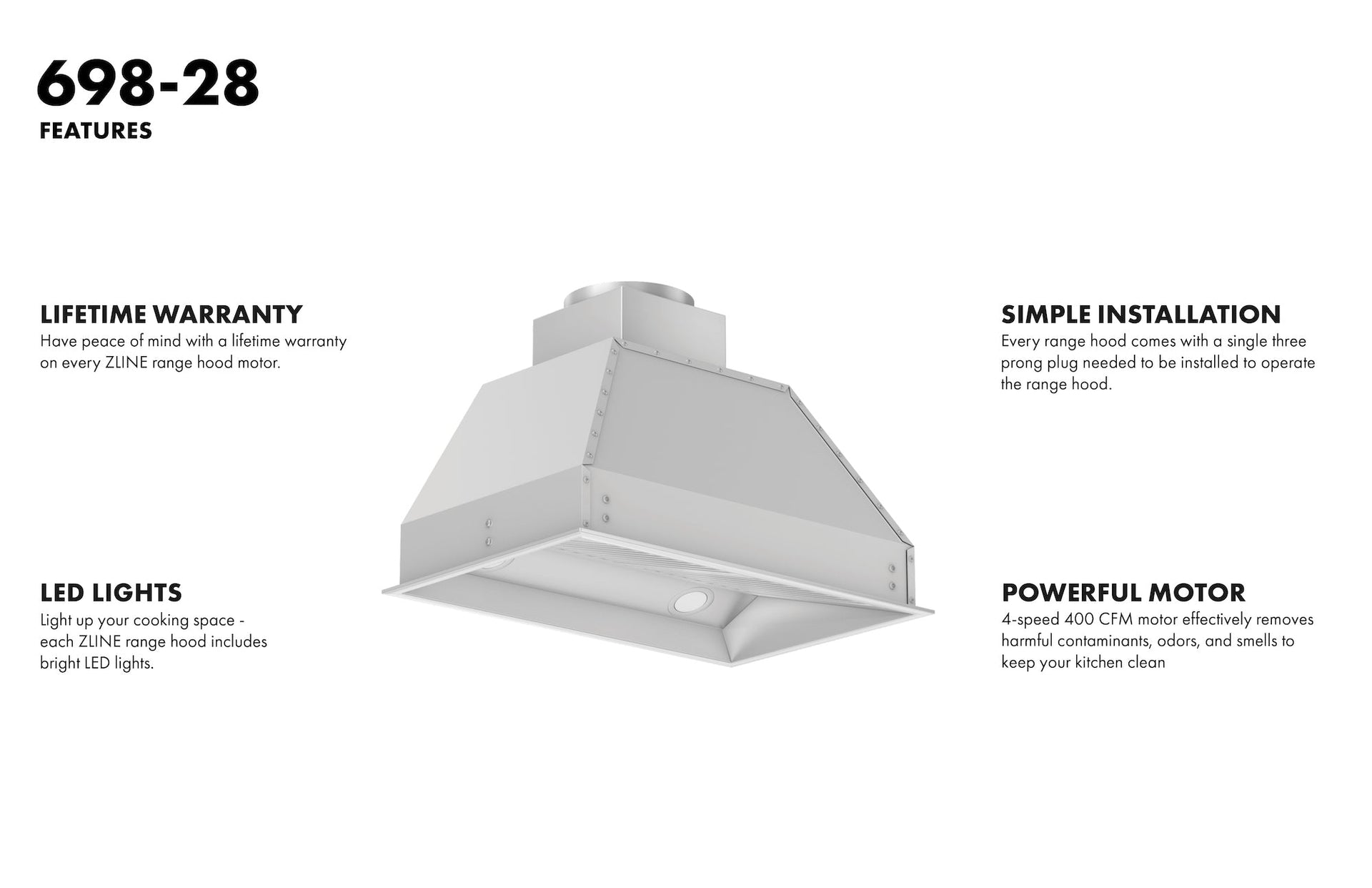

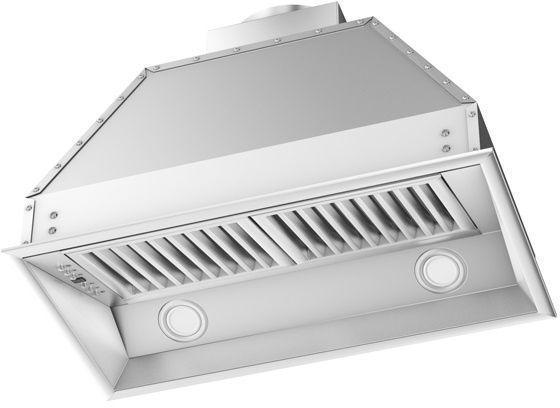

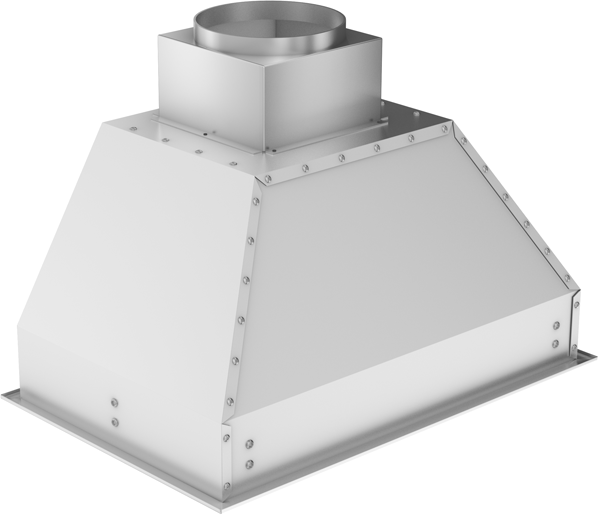

The ZLINE 698-28 28-inch wall mount range hood insert is designed to deliver efficient ventilation performance with a clean, built-in look. Constructed from durable 430-grade stainless steel, this range hood insert is engineered for long-lasting use while complementing a variety of kitchen designs.
Equipped with a 4-speed motor, this unit provides adjustable airflow up to 400 CFM to effectively remove smoke, grease, and cooking odors. Integrated LED lighting enhances visibility over your cooktop, while dishwasher-safe stainless steel baffle filters simplify maintenance.
This range hood insert is ETL certified and includes essential components for standard installation.
Key Features:
-

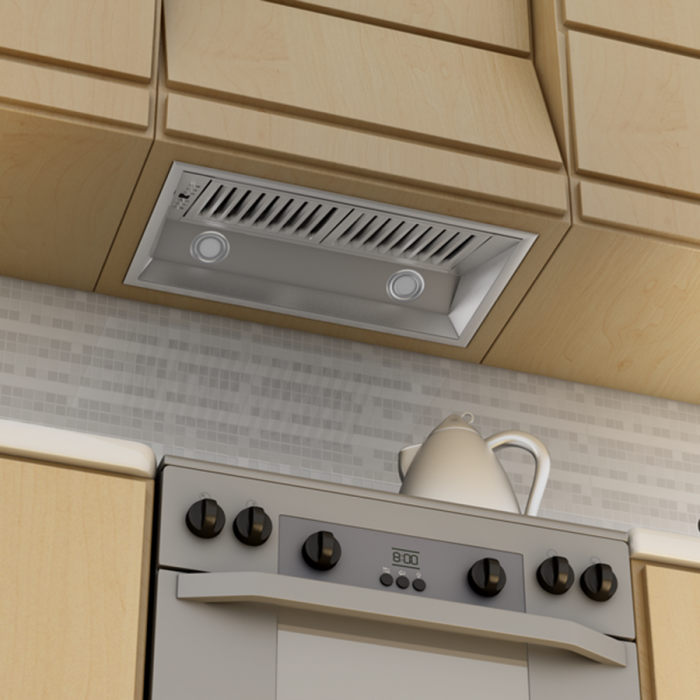

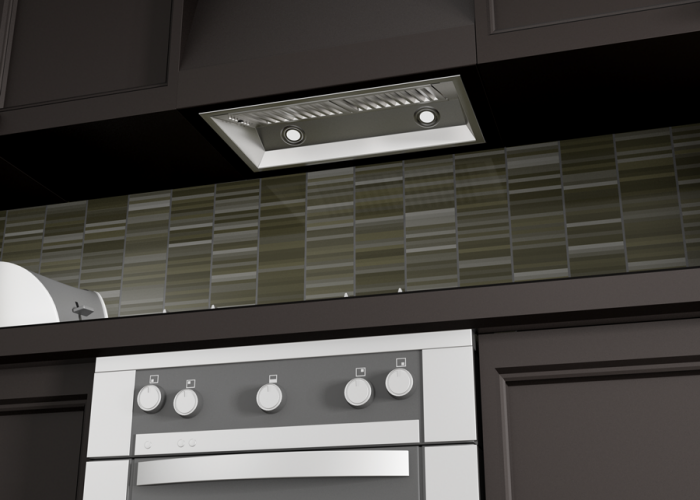

28-Inch Built-In Design: Ideal for custom cabinetry or wall-mounted hood installations
-
400 CFM Ventilation Power: Efficiently removes smoke, grease, and odors
-
4-Speed Fan Control: Adjustable airflow levels for different cooking needs
-
Durable Stainless Steel Construction: Made from 430-grade stainless steel for long-term durability
-
Dishwasher-Safe Baffle Filters: Easy to clean and maintain
-
LED Lighting: Dual directional LED lights improve cooking visibility
-
Push Button Controls with Timer: Includes LCD panel and 3-minute auto shutoff function
-
Quiet Operation: Operates as low as 30 dB for minimal noise disruption
-
Ducted Vent Installation: Designed for external venting only (non-ductless)
-
ETL Certified: Meets safety and performance standards
Specifications
-
Brand: ZLINE Kitchen and Bath
-
Model: 698-28
-
Dimensions: 28" W x 18" D x 14.2" H
-
Airflow: Up to 400 CFM
-
Fan Speeds: 4-Speed (280 / 460 / 670 / 400 CFM)
-
Noise Level: 30–55 dB
-
Lighting: 2 x 3W LED Lights
-
Voltage: 110V / 60Hz
-
Vent Size: 6-inch outlet (includes transition piece with backdraft damper)
-
Control Type: LCD Panel with Timer and Delayed Shutoff
-
Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
-
Material: 430 Stainless Steel
-
Certification: ETL Listed
-
Warranty: 3-Year Parts Warranty
Additional Information
- Designed for ducted installation only (no recirculation option)
- Suitable for indoor residential use
- Also available in multiple sizes for different kitchen configurations
