Package Includes
- ZLINE Autograph 48 in. Gas Burner/Electric Oven in Stainless Steel, White Matte Door with Gold Accents, RAZ-WM-48-G
- ZLINE 48 Inch Autograph Edition Range Hood with White Matte Shell and Gold Handle, 8654STZ-WM48-G

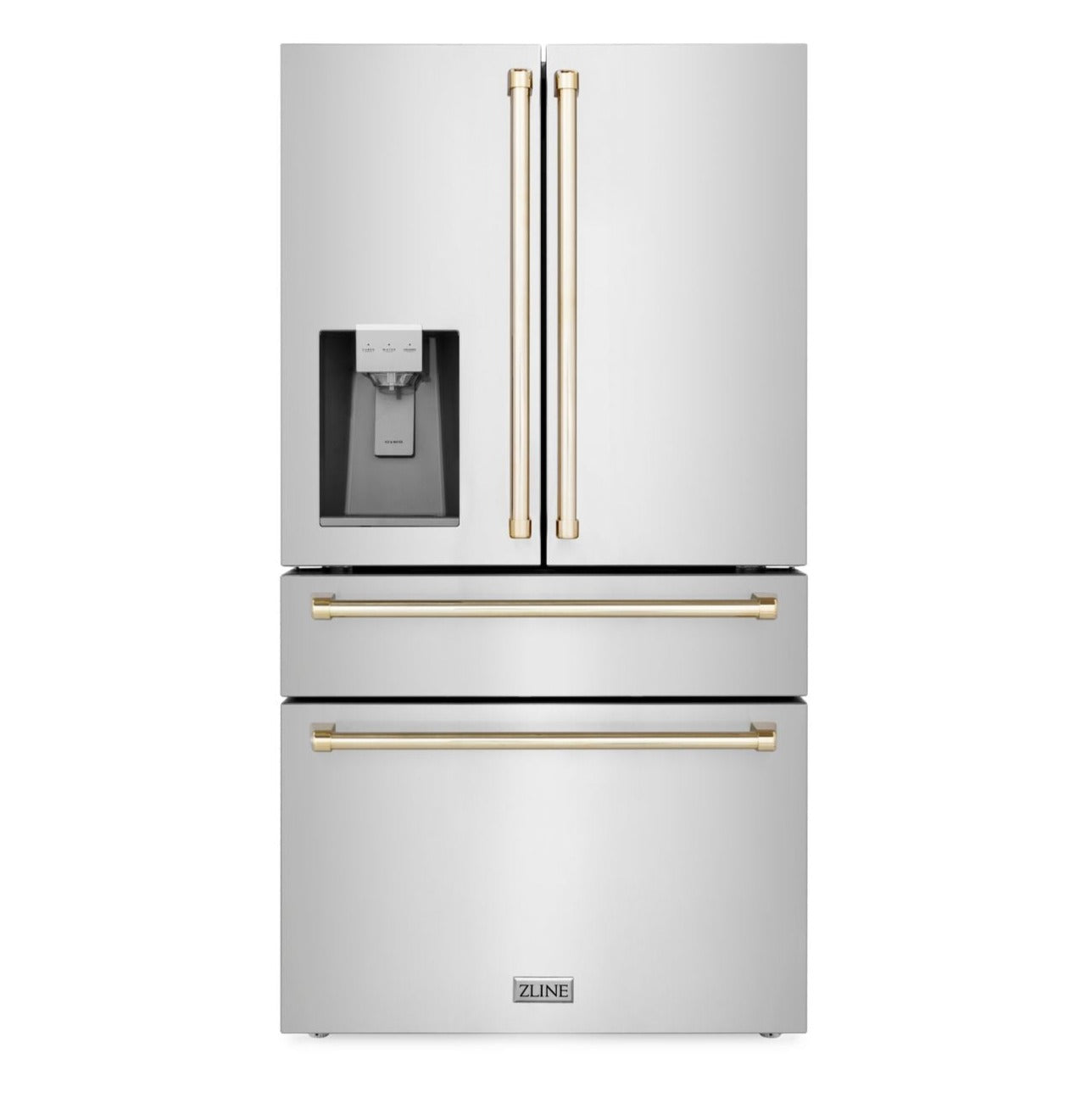

- ZLINE 36 In. Autograph French Door Refrigerator with Water and Ice Dispenser in Fingerprint Resistant Stainless Steel with Gold Accents, RFMZ-W-36-G
- ZLINE Autograph Edition 24 In. Tall Dishwasher, Touch Control, in Stainless Steel with Gold Handle, DWMTZ-304-24-G
Range
-
Fuel Type. Natural or Propane Gas Burners, Electric Oven
-
Precise Cooking. Rely on precise and even cooking for every homemade dish with a gas stove and convection oven.
- Cook Like A Pro. Achieve optimal results from our sealed burners with cooking power from 4,200 up to 18,000 BTUs.
-
Large Capacity. An ultra-deep 6.0 cu. ft. total oven capacity with three layers of glass and dual lighting for crystal-clear visibility.
-
Buy with Confidence. 1 Year Full Warranty
Range Hood
Refrigerator
-
Type. Counter Depth Design
-
Large Capacity. Create more room for your items with a large fridge and freezer space at 21.6 cu. ft. capacity
-
Fingerprint-Resistant Finish. Enjoy a clean look in your kitchen with fingerprint-resistant 430-grade stainless steel
-
Triple Cooling System. Independent refrigerator, freezer, and ice maker cooling systems help keep foods fresh
-
Exterior Ice and Water Dispenser. Enjoy filtered water and ice that's free of contaminants without opening the refrigerator door
-
Cool Worry Free. 1 year parts and labor warranty
Dishwasher
-
Auto Cycle. Automatically detects the right water temperature and pressure needed for your load
-
Adjustable Racks. Provide flexibility for you to load large dishes up to 13 inches in height
-
Spacious Capacity. Accommodates up to 14 place settings with a 3rd rack for utensils
PRODUCT SPECIFICATIONS:
Range
| Product Dimensions |
48"W x 27.5"D x 36"H
|
| Interior Oven Dimensions |
Large Oven: 26.5"W x 18.5"D x 14"H
Small Oven: 12.5"W x 18.5"D x 14"H
|
| Fuel Type |
Cooktop: Natural or Propane Gas
Oven: Electric
|
| Voltage |
*Requires a minimum of 220V-240V/60HZ/30-50A (please check your kitchen meets this electrical requirement prior to purchase)
NEMA-14-50 4 wire plug system
|
| Warranty |
1 Year Parts and Labor |
Range Hood
| Product Dimensions |
48"W x 23.75"D x 16"H |
| Chimney Dimensions |
13.25"W x 11.75"D x 35.5"H
|
| Airflow |
280 / 420 / 580 / 700 (CFM) |
| Warranty |
3 Years Parts. Lifetime warranty on the motor. |
Refrigerator
| Product Dimensions |
35.8''W x 69.9''H x 29''D
|
| Total Capacity |
21.6 cu. ft.
|
| Refrigerator Capacity |
15.04 cu. ft. |
| Freezer Capacity |
6.6 cu. ft. |
| Icemaker |
Yes |
| Water Dispenser |
Yes |
| Warranty |
1 Year Parts and Labor |
Dishwasher
| Dimensions (Minimum Height) |
23.875" W x27" D x 33.75" H |
| Dimensions (Maximum Height) |
23.875" W x27" D x 35" H |
| Cut-out Dimensions |
24" W x 25" D x 34" H |
| Interior Dimensions |
21.65" W x 22.17" D x 26.61" H |
| Noise Level |
45 dbA |
| Warranty |
1 Year Parts |
Dual Fuel Range Manual - Installation Instruction
Range Hood - Installation Instruction
Refrigerator - Installation Instruction
Dishwasher - Installation Manual
Dishwasher - User Manual
